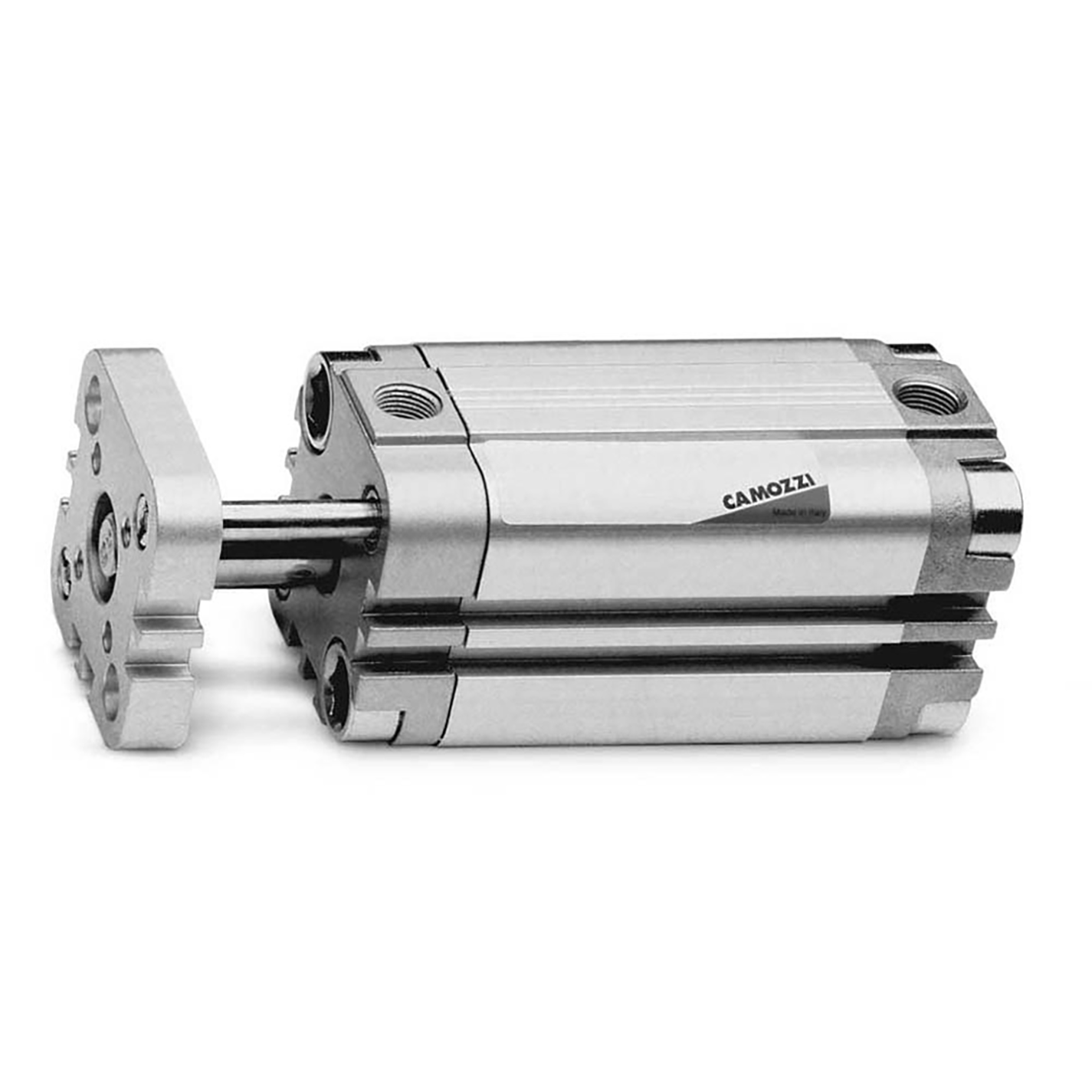

M5 Metric Female Ports Series 31 Double Acting Compact Cylinder
Product code: 31R2A025A025
£104.13
List price
£104.13
Buy price
Specification
M5 Metric Female Ports, 25mm Bore x 25mm Stroke, Series 31 Double Acting, Non-rotating with Flange Only, Compact Cylinder, Magnetic, Ø25mm, Aluminium Barrel x Stainless Steel Piston Rod, M10 x 1.25 Non-rotating Rod Thread, Working Temperature 0°C to +80°C, Working Pressure 1 to 10 bar, Camozzi
Details
| Barrel Material | Aluminium |
| Bend Radiusmm | 1 to 10 |
| Bore Sizemm | 25 |
| Breaking Strain | 25 |
| Hose Length Metres | Non-rotating |
| Kit Contents | 25 |
| Maximum Working Pressurepsi | M10 x 1.25 |
| Maximumworking Pressurebar | 0°C to +80°C |
| Nominal Bore Amm | Female |
| Piston Rod Material | Stainless Steel |
| Piston Rod Thread | M10 x 1.25 |
| Piston Rod Thread Gender | Non-rotating |
| Plug | M5 |
| Port Size Metric | M5 |
| Ratio | Stainless Steel |
| Seat Material | Aluminium |
| Stroke Lengthmm | 25 |
| Thread Gender | Female |
| Thread Type | Metric |
| Working Pressurebar | 1 to 10 |
| Working Temperature | 0°C to +80°C |
