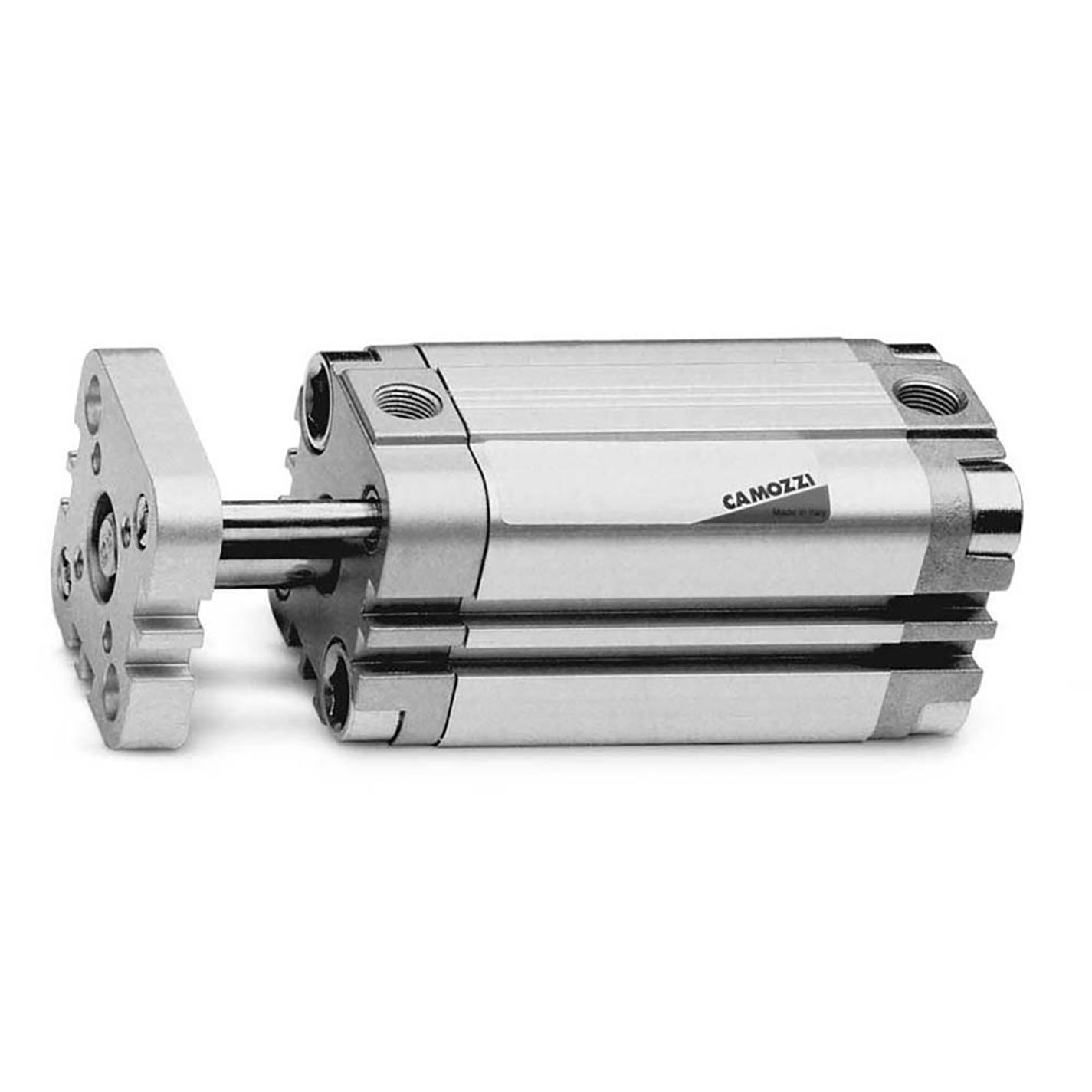

1/8" BSP Parallel Female Ports Series 31 Double Acting Compact Cylinder
Product code: 31R2A040A040
£150.11
List price
£150.11
Buy price
Specification
1/8" BSP Parallel Female Ports, 40mm Bore x 40mm Stroke, Series 31 Double Acting, Non-rotating with Flange Only, Compact Cylinder, Magnetic, Ø40mm, Aluminium Barrel x Stainless Steel Piston Rod, M10 x 1.25 Non-rotating Rod Thread, Working Temperature 0°C to +80°C, Working Pressure 1 to 10 bar, Camozzi
Details
| Barrel Material | Aluminium |
| Bend Radiusmm | 1 to 10 |
| Bore Sizemm | 40 |
| Breaking Strain | 40 |
| Hose Length Metres | Non-rotating |
| Kit Contents | 40 |
| Maximum Working Pressurepsi | M10 x 1.25 |
| Maximumworking Pressurebar | 0°C to +80°C |
| Nominal Bore Amm | Female |
| Operating Range L P M | 1/8" |
| Piston Rod Material | Stainless Steel |
| Piston Rod Thread | M10 x 1.25 |
| Piston Rod Thread Gender | Non-rotating |
| Port Size Inch | 1/8" |
| Ratio | Stainless Steel |
| Seat Material | Aluminium |
| Stroke Lengthmm | 40 |
| Thread Gender | Female |
| Thread Type | BSPP |
| Working Pressurebar | 1 to 10 |
| Working Temperature | 0°C to +80°C |
